Unified tool leader and calener informative note of the CT

A unified leader and calener tool will be created to comply with the new DB-HE of the Technical Code.

——————————

Revision note: At the end of the article has included the download elements to be able to install the tool application unified LIDER CALENER .

A few days ago we talked about the approved program for CE3X energy certification of buildings (Option simplified) at the moment it was not going to be updated according to note issued by EFINOVATIC in response to the requirements of the new code technician attending to the latest updates. (See article HERE )

From the portal of the Technical Code (Ministry of Industry) have issued an informative note to clarify the application of computer tools for the verification of the requirements established by the Order FOM/1635, of September 10, 2013 (BOE 09/12/2013) , which updates the Basic Document of Energy Saving DB-HE. To fulfill the new demands will create a tool that unifies the leading and calener program .

Informative note to clarify the application of computer tools for the verification of the requirements of the Basic Energy Saving Document DB-HE (Key Points)

[…]

5.- The new DB-HE of the year 2013 introduces a series of changes to the requirements of the 2006 document and in particular, for new buildings and extensions of existing buildings, new demands relating to the consumption of primary or renewable energy and explicit requirements in energy demand , indicators that are also contemplated in the regulations for energy certification of buildings.

[…]

7.- Even though the new DB-HE does not establish the obligation to use an official tool for the verification of demand requirements and energy consumption, from this General Directorate it has been considered convenient make a new tool available to designers free computer science that allows the verification of those requirements of the DB-HE that require the evaluation of the demand energy and the energy consumption of the buildings.

8.- This has meant the unification on a single platform of the general programs officers employed to date for the evaluation of the energy demand and energy consumption (LIDER-CALENER), as well as the adaptation of the tool to the changes introduced by the new DB-HB. This new tool is called “ Unified Tool LEADER-CALENER ”….etc. (Already available at the end of the article)

[…]

10.- In view of the exposed, and to facilitate the professionals to adapt to the new tool, and in the exclusively for the verification of the DB-HE, it has been deemed appropriate to enable a maximum period of coexistence of nine months for the use of tools official IT LIDER and CALENER that is extends from March 13, 2014 and will expire after expiration of this period or before if the completion of the process modification of the regulatory scope of certification energy allows it . The above should not Under no circumstances shall it be understood as an extension of the term for the application of regulatory requirements, but as a coexistence of the official IT tools of calculation.

11.- The use of LIDER tools and CALENER during the period of coexistence must be carried out following the technical criteria detailed in the ANNEX to this informative note….etc.

[…]

ANNEX

1.- For residential buildings private:

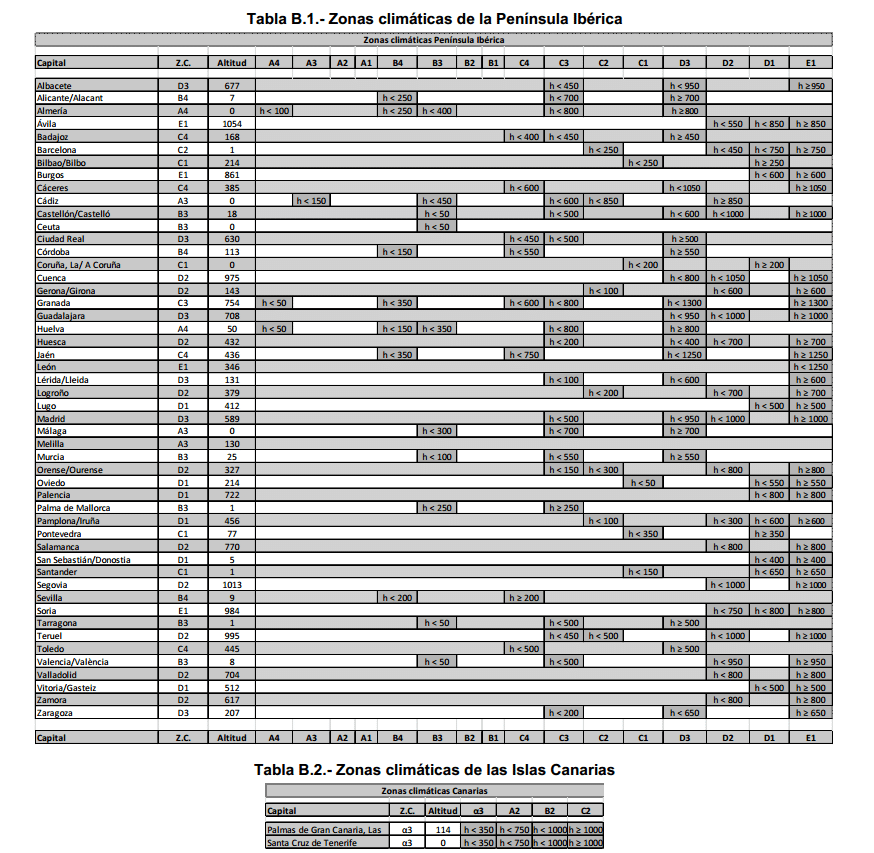

• The climate zone of the building is defined in the Appendix B of Section HE1 of the year DB-HE 2013 and not the one that, if applicable, is assigned by the program. In the case of a locality to which the zone corresponds alpha climate, if the locality belongs to the province of Tenerife would have to adopt the climate of the town of Tenerife and if it belongs to the province of Las Palmas there would be to adopt the climate of the town of Las Palmas de Gran Canary. (From Home Repair Care we add the table, You can also access the DB-HE of the year 2013 through the BOE…. HERE , for the table is the page 27)

• If teams were not defined in the project for a air conditioning service, you would have to enter manually in the program systems whose characteristics are the defined for the reference systems in the table 2.2 of section HE0 of DB HE 2013 . In the system reference for cold production must be understood the yield value as the quotient between the heat compensated sensitive and electrical power consumed. (From Home Repair Care we add the table, it is also You can access the DB-HE of the year 2013 by the BOE…. HERE, for the table is page 10)

• The ventilation rate is adjusted by default to a value of 0.63 renewals/hour , in the that the use of buildings has been taken into account private residential type through a profile standardized.

2.- For buildings for use other than residential:

• The climate zone of the building is defined in the Appendix B of section Db-HE 2013 (See table B.1 and B.2 above) and not the one that, where appropriate, assigns the program. In the case of alpha climatic zones, it would be necessary to adopt the climate corresponding to the locality of Tenerife or Las Palmas de Gran Canaria.

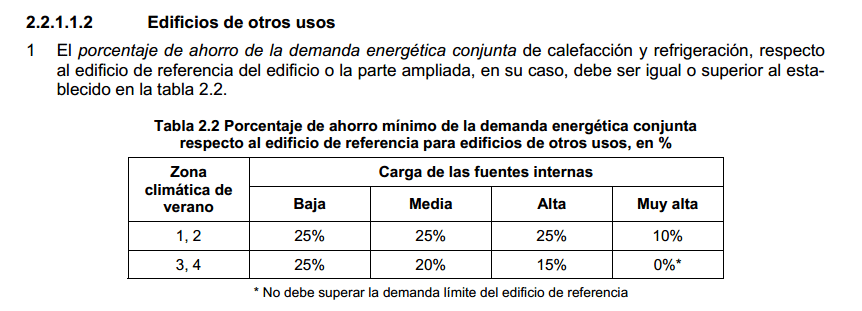

• The ventilation rate is set by default to a value of 0.80 renewals/hour for the calculation of the requirement 2.2.1.1.2 of the section HE-1 . (From Home Repair Care we add the table, in addition you can access the DB-HE of the year 2013 by the BOE…. HERE, for the table is the page 14)

——————————

Lider unified tool Calener:

The computer application makes it possible to verify the requirements 2.2.1 of section HE0, 2.2.1.1 and point 2 of the section 2.2.2.1 of section HE1 of the Basic Document of Energy Saving DB-HE. The requirement established for Newly built buildings for use other than residential private in section 2.2.2 of section HE0 must be verified, as established by the DB-HE, according to the basic procedure for energy certification of buildings. Other requirements of sections HE0 and HE1 that are applicable must be verified by other media.

Application and installation of the tool unified LIDER-CALENER and its plugins:

Download and install the unified tool LEADER-CALENER (Version 2.0.2039.1160 of June 24 2020) where is the user manual of the unified tool and its updates.

——————————
